 애너몰픽 빔 형상 및 레이저 투시

 검출기 어레이 조명

 저손실, 고에너지 무반사 코팅

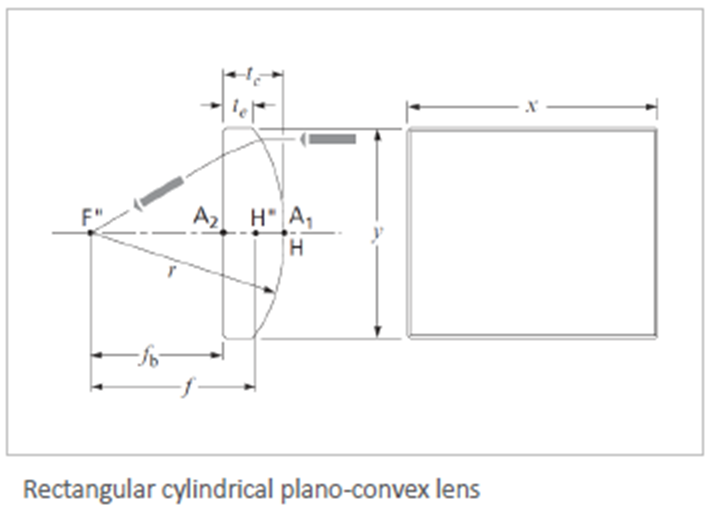

Specifications

Product Code

RCX-C

Optical Material

N-BK7

Surface Figure (p-v at 633 nm before coating)

Cylindrical side: λ (y-axis), λ/cm flatness (x-axis)

Plano side: λ/4 flatness

Surface Quality

20-10 scratch and dig

Dimensional Tolerance

0/–0.25 mm

Center Thickness

tc±0.25 mm

Chamfer

0.35 mm at 45° typical

Wedge

≤ 3 arc minutes

Paraxial Focal Length

ı0.5% typical

Antireflection Coating

Wavelength user specified

Narrowband: R ≤ 0.25% per surface

Broadband: Ravg ≤ 0.5% per surface

Clear Aperture (CA)

≥ 85% of central dimension

Damage Threshold

10 J/cm2, 20 nsec, 20 Hz @ 1064 nm
