 펄스 길이 > 50fs에 대해 설계

 For intracavity use in femtosecond regenerative amplifiers

 극초단 펨토초 광원을 위한 낮은 Group-velocity dispersion

Specifications

Product Code

TFPK

Optical Material

UV-grade fused silica

Transmission Efficiency

Tp > 98% for each surface.

Slight tilting is required to find angle of minimum loss.

Reflection Efficiency

Rs > 75% each surface.

s-polarization reflectivities of 85% and 95% are available at some sacrifice of p-polarization transmission.
Working angle of incidence will increase.

Typical Bandwidth

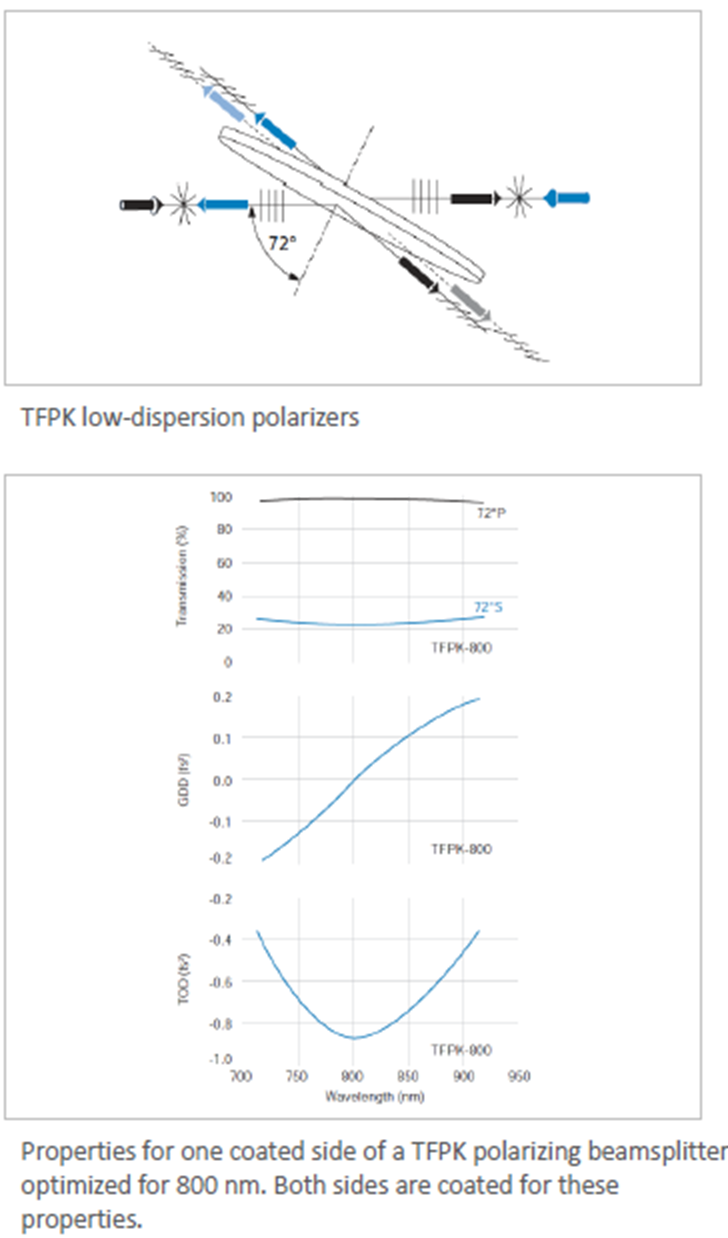

See curve for 800 nm performance.

Wavelength

800 nm

Angle of Incidence

72°±2°
